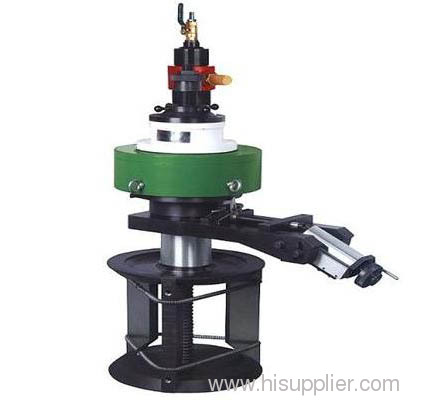

Internally-Mounted Pipe & Tube Bevelling Machine (II-Type)

Main characteristic:

The machine, pipe/tube lathe / pipe beveller manages requirements of the processing of slope mouth of the thick and large pipe, the large pipe/tube uses more extensive, can not only process the U, V welding line of end sloping/chamfering, back ridging, edge cutting for carbon steel, stainless steel and alloy steel pipes, but also can treat the welded convex flange and plain flange. For the cutter/beveller frame there are angle scales to enter. Beveling angle can be chosen wantonly, and can feed automatically. It is easy to operate.

Widely used in chemical, boiler, nuclear power, Oil & Gas, fabrication / processing plants, shipbuilding and so on.

Sloping bound/range: I. D. 80-1500mm
Grooving thickness: 15-75 mm

Electric/Pneumatic	Working range       (I.D.mm)	Wall thickness      (mm)	Rotating rate      (rpm)	Weight
ISY-250-II/TCM-250-II	Φ80-240mm	≤75mm	16 rpm	40kg
ISY-351-II/TCM-351-II	Φ150-330mm	≤75mm	14 rpm	48kg
ISY-630-II/TCM-630-II	Φ330-600mm	≤75mm	10rpm	58kg
ISY-850-II/TCM-850-II	Φ600-820mm	≤75mm	8rpm	80kg
ISY-1050-II/TCM-1050-II	Φ770-1020mm	≤75mm	7rpm	108kg
ISY-1300-II/TCM-1300-II	Φ1015-1255mm	≤75mm	5rpm	120kg
ISY-1500-II/TCM-1500-II	Φ1270-1470mm	≤75mm	4rpm	150k
